STAINLESS STEEL/CARBON STEEL FITTINGS

Butt-Weld Fittings

• Used in large diameter, high-pressure pipelines. Welded directly to pipes for permanent installations.
• FittingDescription

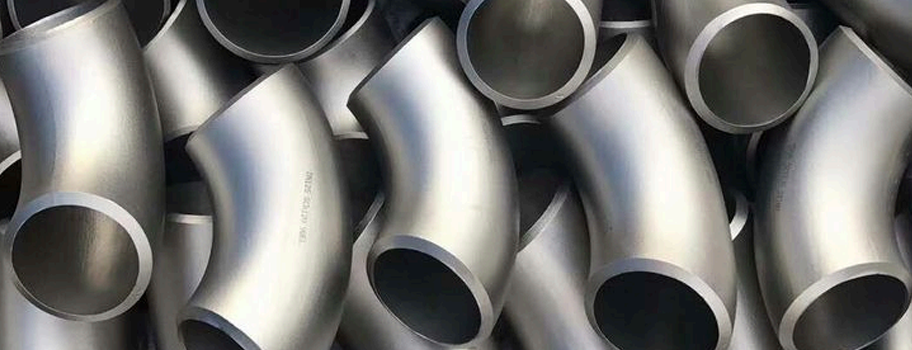

• Elbow (45°, 90°, 180°)
• Changes direction of flow. 45° for slight turns, 90° for right-angle turns, and 180° for return flow.
• Tee (Equal / Reducing)
• Creates a 90° branch. Equal tee connects same-size pipes; reducing tee connects pipes of different diameters.
• Reducer (Concentric / Eccentric)
• Concentric: used for vertical lines; symmetrical. Eccentric: used for horizontal lines to prevent air pockets.
• End Cap
• Closes the end of a pipe, preventing flow.
• Stub End
• Used with lap joint flanges for easy disassembly in flanged connections.
